Installing Vault Server
Installing Vault
- Vault is a platform-agnostic tool, meaning it can operate on a variety of underlying platforms, including
- Kubernetes
- Cloud-based machines (e.g., AWS instances, Azure virtual machines)
- VMware virtual machines
- Physical servers
- Laptops
- Vault is also compatible with multiple operating systems, such as: MacOS, Windows, Linux, FreeBSD, NetBSD, OpenBSD, Solaris, etc.
- To install and set up Vault, follow this order of operations
- Install Vault
- Create a configuration file
- Initialize Vault
- Unseal Vault
- Where to download Vault
- vaultproject.io
- releases.hashicorp.com/vault
- Alternatively, use your preferred package manager (e.g., apt, yum, or even homebrew-community-supported)
- For Kubernetes, use the Vault Helm Chart to install and configure Vault
- Installation steps
- Download Vault
- Unpackage Vault
- Set the Path
Running Vault Dev Server
Running Vault dev server
- Key features
- Requires no configuration
- Automatically initializes and unseals Vault
- Enables the user interface (UI), accessible at localhost
- Provides an unseal key
- Automatically logs in as the root user
- Runs in non-persistent mode (data is stored in memory only)
- Operates without TLS (insecure)
- Sets the listener to 127.0.0.1:8200
- Mounts a Key/Value (K/V) version 2 secret engine
- Generates a root token
warning
Never use the dev server mode in a production environment due to its lack of persistence and security
- Uses cases
- Proof-of-concept projects
- Developing and testing new integrations
- Exploring and testing Vault's new features
- Experimenting with Vault functionality
To start the Vault dev server, use the following command
vault server -dev
Running Vault Server in Production
Guidelines
- Deploy one or more persistent Vault nodes using a configuration file
- Select a storage backend that meets Vault's requirements (e.g., Consul, integrated storage, or other supported options)
- Configure multiple Vault nodes to form a cluster
- Deploy Vault nodes close to your applications to minimize latency
- Automate Vault provisioning for efficiency in most production scenarios
- Start the Vault server with the command
vault server -config=<file>
- Use a service manager (e.g., systemctl on Linux, Windows Service Manager) to execute and manage the Vault service in a production environment
- For Linux systems, create a systemd service file to manage Vault (and Consul, if applicable)
System configuration files
- Vault Service: vault.service
- Consul Server: vault.service
- Consul Client (running on the Vault node): vault.service
Deployment architecture

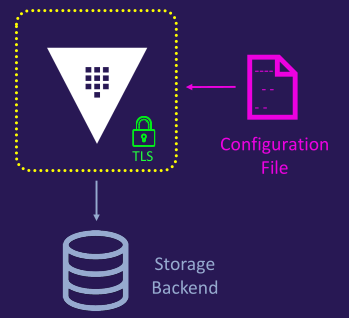

- Single node
- No redundancy
- No scalability
- Not suitable for production use

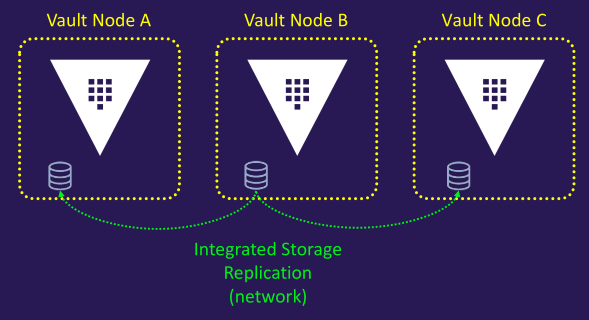

- Multi-Node Vault cluster (with integrated storage)

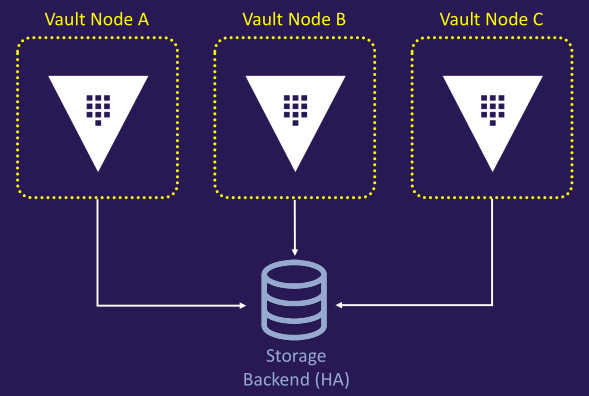

- Multi-Node Vault cluster (with external storage backend)
Step-by-step manual installation
- Download Vault
- Unpackage Vault
- Set the path
- Add and customize configuration file
- Create a systemd service file
- Download Consul
- Configure and join Consul cluster
- Launch Vault service
Configuring the Consul Storage Backend
Key features
- Provides durable key/value (K/V) storage for Vault data
- Allows independent scaling of the backend
- Simplifies automation
- Features built-in integration between Consul and Vault
- Supports high availability
- Operates as a distributed system
- Includes built-in snapshots for data retention
- Supported by HashiCorp

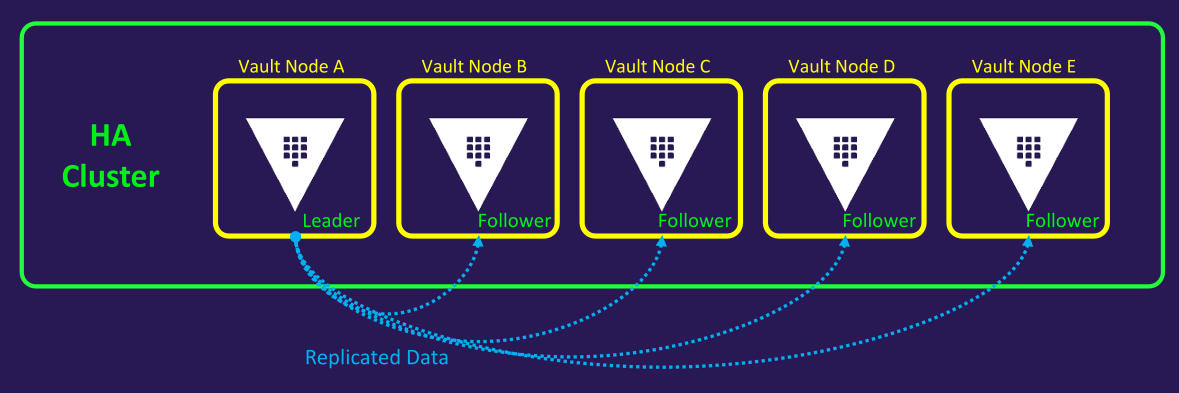

Consul cluster configuration
- Deploy Consul across multiple nodes, configured as a cluster
- Use an odd number of nodes (e.g., 3, 5, 7) to ensure a majority for leader election
- Replicate all data across every node in the cluster
- Conduct a leader election to designate one Consul node as the leader
- The leader accepts new log entries and replicates them to all other nodes
note
In a production environment, avoid using the Consul cluster for both Vault storage and other Consul functions
Architecture diagram

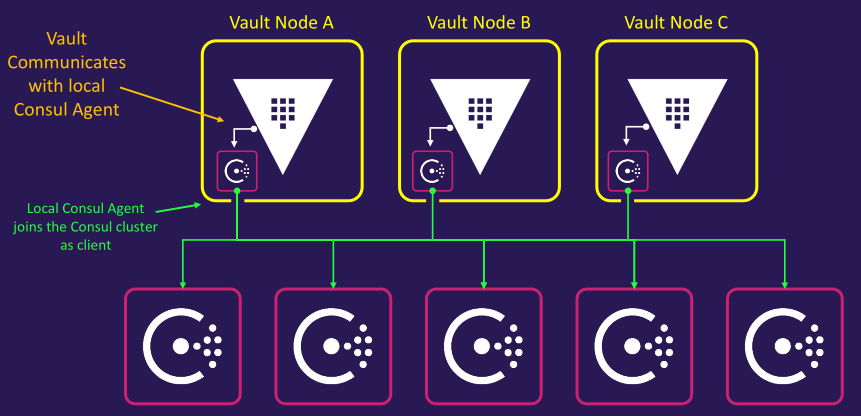

- Consul storage backend communication

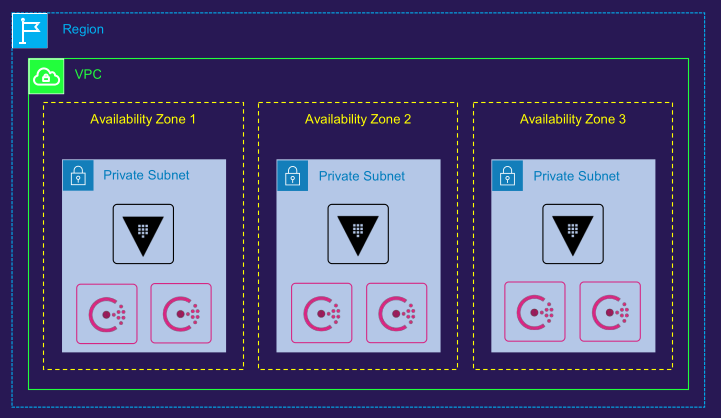

- Visualization of Consul cluster
Example configuration files
- Vault configuration file (with Consul storage backend)
storage "consul" {
address = "127.0.0.1:8500"
path = "vault/"
token = "1a2b3c4d-1234-abdc-1234-1a2b3c4d5e6a"
}
listener "tcp" {
address = "0.0.0.0:8200"
cluster_address = "0.0.0.0:8201"
tls_disable = 0
tls_cert_file = "/etc/vault.d/client.pem"
tls_key_file = "/etc/vault.d/cert.key"
tls_disable_client_certs = "true"
}
seal "awskms" {
region = "us-east-1"
kms_key_id = "12345678-abcd-1234-abcd-123456789101"
endpoint = "example.kms.us-east-1.vpce.amazonaws.com"
}
api_addr = "https://vault-us-east-1.example.com:8200"
cluster_addr = "https://node-a-us-east-1.example.com:8201"
cluster_name = "vault-prod-us-east-1"
ui = true
log_level = "INFO"
- Consul server configuration file in Consul node
{
"log_level": "INFO",
"server": true,
"key_file": "/etc/consul.d/cert.key",
"cert_file": "/etc/consul.d/client.pem",
"ca_file": "/etc/consul.d/chain.pem",
"verify_incoming": true,
"verify_outgoing": true,
"verify_server_hostname": true,
"ui": true,
"encrypt": "xxxxxxxxxxxxxx",
"leave_on_terminate": true,
"data_dir": "/opt/consul/data",
"datacenter": "us-east-1",
"client_addr": "0.0.0.0",
"bind_addr": "10.11.11.11",
"advertise_addr": "10.11.11.11",
"bootstrap_expect": 5,
"retry_join": ["provider=aws tag_key=Environment-Name tag_value=consul-cluster region=us-east-1"],
"enable_syslog": true,
"acl": {
"enabled": true,
"default_policy": "deny",
"down_policy": "extend-cache",
"tokens": {
"agent": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
}
},
"performance": {
"raft_multiplier": 1
}
}
Configuring the Integrated Storage Backend
Key features
- Serves as Vault's internal storage option
- Utilizes the Raft consensus protocol
- Ensures all Vault nodes maintain a copy of Vault's data
- Eliminates the network hop required by Consul
- Supports high availability
- Simplifies troubleshooting by focusing solely on Vault
- Provides built-in snapshots for data retention
- Supported by HashiCorp
Integrated storage (Raft) configuration
- Integrated Storage, also known as Raft, enables Vault nodes to manage their own replicated storage within a cluster
- Define a local path to store replicatedltu data
- Replicate all data across every node in the cluster
- Remove the need to deploy and manage a separate Consul cluster

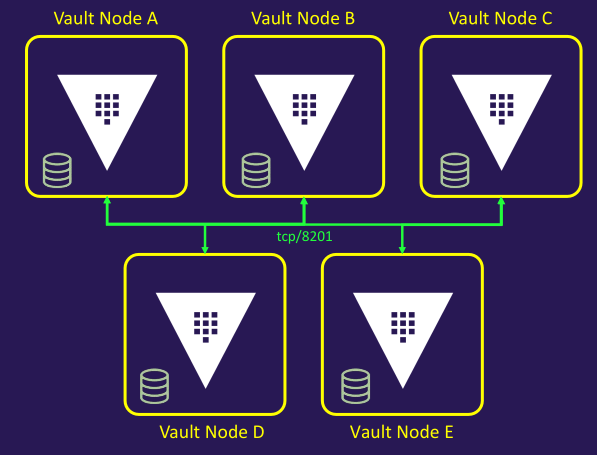

Architecture diagram
Example Vault Server Configuration File
storage "raft" {
path = "/opt/vault/data"
node_id = "node-a-us-east-1.example.com"
retry_join {
auto_join = "provider=aws region=us-east-1 tag_key=vault tag_value=us-east-1"
}
}
listener "tcp" {
address = "0.0.0.0:8200"
cluster_address = "0.0.0.0:8201"
tls_disable = 0
tls_cert_file = "/etc/vault.d/client.pem"
tls_key_file = "/etc/vault.d/cert.key"
tls_disable_client_certs = "true"
}
seal "awskms" {
region = "us-east-1"
kms_key_id = "12345678-abcd-1234-abcd-123456789101"
endpoint = "example.kms.us-east-1.vpce.amazonaws.com"
}
api_addr = "https://vault-us-east-1.example.com:8200"
cluster_addr = "https://node-a-us-east-1.example.com:8201"
cluster_name = "vault-prod-us-east-1"
ui = true
log_level = "INFO"
Managing the cluster
- Manually joining standby nodes
vault operator raft join https://active_node.example.com:8200
- Listing cluster members
vault operator raft list-peers
---
Node Address State Voter
---- ------- ----- -----
vault_1 10.0.101.22:8201 leader true
vault_2 10.0.101.23:8201 follower true
vault_3 10.0.101.24:8201 follower true
vault_4 10.0.101.25:8201 follower true
vault_5 10.0.101.26:8201 follower true
Demo
Installing Vault Using Packer
Refer to this btkrausen/vault/packer
packer validate vault.pkr.hcl
packer build vault.pkr.hcl
Launch built new AMI from AWS
SSH to Vault instance
sudo unzip vault.zip
ls -l
sudo mv vault /usr/local/bin
cd /usr/local/bin
ls -l
vault
vault version
Manually Installing Vault
Using APT Repository
- Downloads HashiCorp's GPG key, converts it to binary, and saves it to /usr/share/keyrings/ for APT verification
- Adds HashiCorp's APT repository to your system's sources, specifying architecture (e.g., arm64) and Ubuntu version (e.g., focal), signed by the GPG key
- Updates the package list and installs the latest vault package from HashiCorp's repository
# Install
wget -O - https://apt.releases.hashicorp.com/gpg | sudo gpg --dearmor -o /usr/share/keyrings/hashicorp-archive-keyring.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list
sudo apt update && sudo apt install vault
# Uninstall
sudo apt remove vault
sudo apt autoclean && sudo apt autoremove
Install with binary
uname -m
---
aarch64
curl -sLo /tmp/vault.zip https://releases.hashicorp.com/vault/1.19.0/vault_1.19.0_linux_arm64.zip
unzip /tmp/vault.zip -d /tmp/
mv /tmp/vault /usr/local/bin/
chmod +x /usr/local/bin/vault
vault --version
Running Vault Dev Server
export VAULT_ADDR="http://127.0.0.1:8200"
vault server -dev
vault status
vault secrets list
vault kv put secret/vaultcourse/kyphan kyphan=kyphan1
vault kv get secret/vaultcourse/kyphan
Running Vault in Production
# Step 1 - Binary
mv /tmp/vault /usr/local/bin/
# Step 2 - Service file
sudo vim /etc/systemd/system/vault.service
# Step 3 - Configuration file
sudo vim /etc/vault.d/vault.hcl
# Start service
sudo systemctl start vault
vault status
sudo systemctl status vault
sudo journalctl -u vault
Lab
Running Vault Dev Server
vault version
cat /etc/vault.d/vault.hcl
vault status
vault server -dev &
export VAULT_ADDR='http://127.0.0.1:8200'
echo "<token>" > /home/kyphan/vault-token
vault status
vault login <token>
vault secrets list
ps -aux | grep vault
kill -9 <pid>
Running Vault Server
vault version
cat /etc/vault.d/vault.hcl
ls -lah /opt/vault/
journalctl -u vault.service -b
vim /lib/systemd/system/vault.service
sudo vim /lib/systemd/system/vault.service
---
ExecStart=/usr/bin/vault server -config=/etc/vault.d/vault.hcl
sudo systemctl daemon-reload
sudo systemctl start vault
sudo systemctl status vault
echo 'export VAULT_ADDR=http://127.0.0.1:8200' >> /home/kyphan/.bashrc
source /home/kyphan/.bashrc
sudo systemctl restart vault
sudo systemctl stop vault
Configuring Integrated Storage Manually
Later
Configuring Auto Unseal
Later
